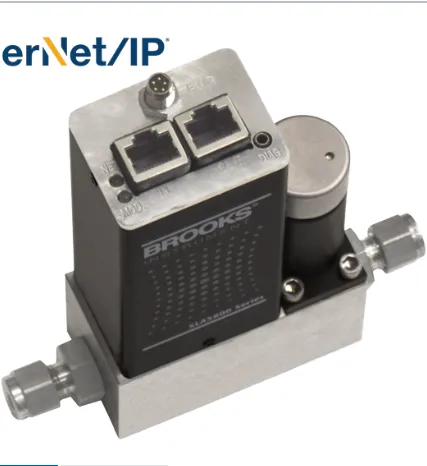

Thiết bị đo lưu lượng SLA5800 Brooks Viet nam

Thiết bị đo lưu lượng SLA5800

SLA5800 Series Elastomer Sealed Thermal Mass Flow Controllers & Meters

BROOKS INSTRUMENT VIỆT NAM

SLA5800 BROOKS VIỆT NAM

Features

Long-term zero stability of <0.2% full scale per year
Excellent accuracy
Wide range of flow ratings – from 0.003 up to 2500 lpm
Highest pressure ratings – up to 1500 psi/100 bar (optional: 4500 psi/310 bar)
Programmable multi-gas/multi-range capabilities
Independent & easily accessible diagnostic/service port
Broad array of available communication options now includes the EtherNet/IP™ protocol which features a web-based interface that lets you easily configure network settings
Modular design is easy-to-service at the factory or in the field

Benefits

Long-term sensor stability reduces maintenance and periodic recalibration requirements, reducing total cost of ownership
Proprietary Brooks Instrument thermal sensing technology delivers superior signal to noise performance for improved accuracy at low set points
Choose one device platform for different gases and flow ranges
Storage and pre-programming of up to six gas calibrations lets users easily switch between different gases and ranges on a single device, and reduces inventory
User-accessible service port simplifies installation, troubleshooting and diagnostic tasks without disturbing flow controller operation
Durable, robust metal top lid prevents damage during installation
EtherNet/IP™ permits multiple, additional diagnostics beyond those provided by the mass flow controller alone, giving users rich, real-time system information
Superior metrology and primary calibration systems based on global standards ensure accuracy

Applications

Chemical and petrochemical catalyst research and pilot processes
Laboratory and analytical systems
Fuel cell technology
Life sciences bioreactors

	SLA5850	SLA5860	SLA5851	SLA5861	SLA5853	SLA5863
Product Type	Mass Flow Controller	Mass Flow Meter	Mass Flow Controller	Mass Flow Meter	Mass Flow Controller	Mass Flow Meter
Differentiator	Controller Flow Range	Meter Flow Range	Controller Flow Range	Meter Flow Range	Controller Flow Range	Meter Flow Range
Flow Range (Full Scale Capacity)	0.003 – 50 slpm	0.003 – 50 slpm	15 – 200 slpm	15 – 200 slpm	100 – 2500 slpm	100 – 2500 slpm
Max Pressure	1500 psi / 103 bar Optional 4500 psi / 310 bar	1500 psi / 103 bar Optional: 4500 psi / 310 bar	1500 psi / 103 bar	1500 psi / 103 bar	1000 psi / 70 bar	1000 psi / 70 bar
Accuracy	0.9% S.P. (20-100% F.S.) 0.18% F.S. (2-20% F.S., 1-20% F.S. from 1-50 lpm)	0.9% S.P. (20-100% F.S.) 0.18% F.S. (2-20% F.S., 1-20% F.S. from 1-50 lpm)	0.9% S.P. (20-100% F.S.) 0.18% F.S. (2-20% F.S., 1-20% F.S. from 1-50 lpm)	0.9% S.P. (20-100% F.S.) 0.18% F.S. (2-20% F.S., 1-20% F.S. from 1-50 lpm)	100 – 2500 lpm: 0.9% S.P. (20-100% F.S.) 100 – 1100 lpm: 0.18% of F.S. (2-20% F.S.) 1100 – 2500 lpm: 1.0% of F.S.	100 – 2500 lpm: 0.9% S.P. (20-100% F.S.) 100 – 1100 lpm: 0.18% of F.S. (2-20% F.S.) 1100 – 2500 lpm: 1.0% of F.S.
Repeatability	0.20% S.P.	0.20% S.P.	0.20% S.P.	0.20% S.P.	0.20% S.P.	0.20% S.P.
Response Time	<1 second	<1 second	<1 second	<1 seconds	<3 seconds	<3 seconds
Multi-Gas & Range Configurability	Standard	Standard	Standard	Standard	Standard	Standard
Diagnostic Capability	Status Lights – MFC Health , Network Status Alarms – Sensor Output, control Valve output, Over Temperature, Power Surge/Sag, Network Interruption Diagnostic/Service Port – RS485 via 2.5 mm jack	Status Lights – MFC Health , Network Status Alarms – Sensor Output, control Valve output, Over Temperature, Power Surge/Sag, Network Interruption Diagnostic/Service Port – RS485 via 2.5 mm jack	Status Lights – MFC Health , Network Status Alarms – Sensor Output, control Valve output, Over Temperature, Power Surge/Sag, Network Interruption Diagnostic/Service Port – RS485 via 2.5 mm jack	Status Lights – MFC Health , Network Status Alarms – Sensor Output, control Valve output, Over Temperature, Power Surge/Sag, Network Interruption Diagnostic/Service Port – RS485 via 2.5 mm jack	Status Lights – MFC Health , Network Status Alarms – Sensor Output, control Valve output, Over Temperature, Power Surge/Sag, Network Interruption Diagnostic/Service Port – RS485 via 2.5 mm jack	Status Lights – MFC Health , Network Status Alarms – Sensor Output, control Valve output, Over Temperature, Power Surge/Sag, Network Interruption Diagnostic/Service Port – RS485 via 2.5 mm jack
Analog Communication	0-5 Vdc, 1-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA	0-5 Vdc, 1-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA	0-5 Vdc, 1-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA	0-5 Vdc, 1-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA	0-5 Vdc, 1-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA	0-5 Vdc, 1-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA
Digital Communication	DeviceNet™ EtherCAT® EtherNet/IP™ FOUNDATION^TMFieldbus Profibus® RS-485	DeviceNet™ EtherCAT® EtherNet/IP™ FOUNDATION^TMFieldbus Profibus® RS-485	DeviceNet™ EtherCAT® EtherNet/IP™ FOUNDATION^TMFieldbus Profibus® RS-485	DeviceNet™ EtherCAT® EtherNet/IP™ FOUNDATION^TMFieldbus Profibus® RS-485	DeviceNet™ EtherCAT® EtherNet/IP™ FOUNDATION^TMFieldbus Profibus® RS-485	DeviceNet™ EtherCAT® EtherNet/IP™ FOUNDATION^TMFieldbus Profibus® RS-485
