Pneumatic Actuators Aira, Valve Aira Việt Nam

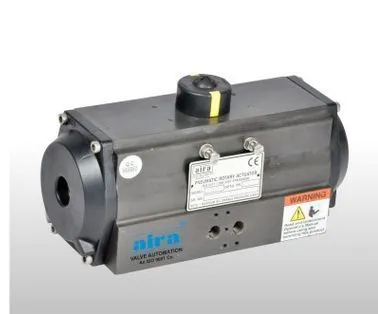

Pneumatic Rotary Actuator Double Acting As Per ISO 5211

Chi tiết sản phẩm

Thiết bị truyền động khí nén xoay theo tiêu chuẩn ISO 5211 Aira

Thông số kỹ thuật máy

METHOD OF TRANSMISSION	RACK AND PINION TYPE
ACTUATION	DOUBLE ACTING
BODY	EXTRUDED ALUMINIUM HARD ANODIZED
CAPS AND RACK	ALUMINIUM PRESSURE DIE CAST
PINION	EN 8
SEALS	BUNA – N / Viton
AIR PRESSURE	NORMAL AIR SUPPLY PRESSURE: 4KG/CM² MAX, AIR SUPPLY PRESSURE: 8KG/CM²
ACTUATOR DESIGN	ISO 5211 (ACTUATOR CAN BE QUICKLY AND EASILY MOUNTING)
ROTATION	90° / 180° ROTATION
TORQUE	UP TO 13673 NM
